An In-Depth Guide to Apache Kafka Streams

 Introduction

This document serves as a comprehensive guide for beginners looking to understand and implement Apache Kafka Streams. It covers the fundamental concepts, key features, architecture, and processing topology of Kafka Streams, along with practical code examples to facilitate hands-on learning.

By the end of this article, readers will have a solid foundation in Kafka Streams, enabling them to leverage this powerful tool for real-time data processing in applications.

1. What is Apache Kafka Stream?

Apache Kafka Streams is a client library for building applications and microservices, where the input and output data are stored in Kafka clusters. It allows developers to process and analyze data in real-time, providing a powerful way to handle streaming data. Kafka Streams is designed to be simple to use, yet powerful enough to handle complex stream processing tasks.

Kafka Streams enables developers to create applications that can read data from Kafka topics, process it, and write the results back to Kafka topics. This makes it an essential tool for building event-driven architectures and real-time analytics applications.

2. Key Features of Kafka Streams

Kafka Streams comes with several key features that make it a popular choice for stream processing:

• Simplicity: Kafka Streams provides a simple programming model that allows developers to focus on business logic rather than the complexities of distributed systems.

• Scalability: It can scale horizontally by adding more instances of the application, allowing it to handle increased loads seamlessly.

• Fault Tolerance: Kafka Streams is designed to be resilient to failures, ensuring that applications can recover from crashes without data loss.

• Stateful Processing: It supports stateful operations, enabling applications to maintain state across multiple events.

• Windowing: Kafka Streams allows developers to perform operations over time windows, making it suitable for time-based analytics.

• Integration with Kafka: It is tightly integrated with Kafka, allowing for easy data ingestion and output.

3. Kafka Stream Processing Topology

In Kafka Streams, a processing topology defines the structure of the data processing pipeline. It consists of sources, processors, and sinks:

• Sources: A source processor receives records only from Kafka topics, not from other processors. A sink processor sends records to Kafka topics, and not to other processors.

• Processors: These are the transformation steps that process the data. They can perform operations such as filtering, mapping, and aggregating.Processor nodes can run in parallel, and it’s possible to run multiple multi-threaded instances of Kafka Streams applications. However, it’s necessary to have enough topic partitions for the running stream tasks, since Kafka leverages partitions for scalability.

• Stream task : Stream tasks serve as the basic unit of parallelism, with each consuming from one Kafka partition per topic and processing records through a processor graph of processor nodes.

• Sinks: These are the output topics where the processed data is written.

To keep partitioning predictable and all stream operations available, it’s a best practice to use a record key in records that are to be processed as streams.

4.Kafka Stream Time

Time is a important concept in Kafka Streams. Streams operations that are windowing-based depend on time boundaries.

Event time is the point in time when an event is generated.

Processing time is the point in time when the stream processing application consumes a record.

Ingestion time is the point when an event or record is stored in a topic. Kafka records include embedded time stamps and configurable time semantics.

Domain-Specific Language (DSL) built-in abstractions

Kafka Streams provides multiple ways to define and build stream processing logic:

1. Streams DSL – A high-level, functional API with built-in abstractions.

2. Processor API – A lower-level, procedural interface for custom processing.

3. Proprietary Tools – Such as KSQL, which allow SQL-like queries over streams.

The Streams DSL introduces powerful abstractions like:

• KStream

• KTable

• GlobalKTable

• KGroupedStream

• KGroupedTable

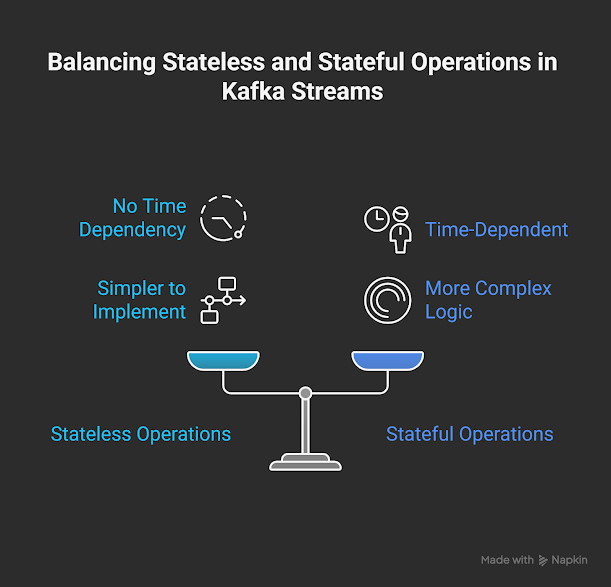

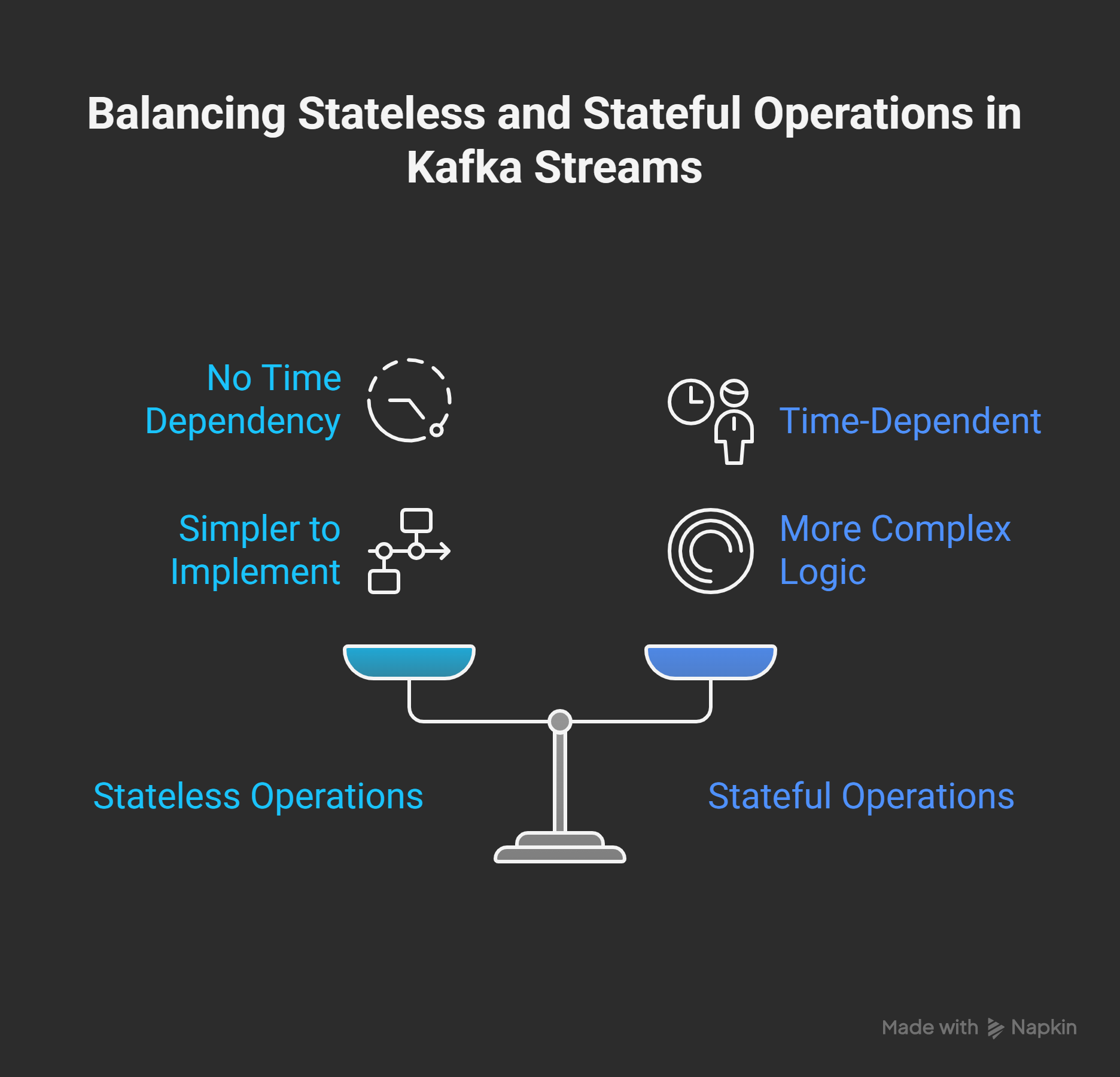

These enable developers to write expressive and maintainable streaming applications using a declarative, functional programming style. The DSL supports:

• Stateless operations: like map, filter

• Stateful operations: such as join, aggregate, and windowed operations that depend on time semantics.

KTables

KTable is a key abstraction for maintaining state in Kafka Streams. It behaves like a continuously updating table where each key holds its most recent value. Input records act as a changelog, reflecting inserts, updates, or deletions. Each KTable instance only reads from the partitions assigned to it, whereas a GlobalKTable is fully replicated across all instances, reading from every input topic partition

DSL Operations

The following reference table (not included here) provides a comprehensive overview of available DSL operations, detailing their input types and resulting output mappings. This guide helps developers construct robust, complex stream processing topologies with ease.

SerDes

Kafka Streams applications need to provide SerDes, or a serializer/deserializer when data is read or written to a Kafka topic or state store. This enables record keys and values to materialize data as needed. You can also provide SerDes either by setting default SerDes in a StreamsConfig instance, or specifying explicit SerDes when calling API methods.

The following diagram displays SerDes along with other data conversion paths:

4. Kafka Stream Architecture

The architecture of Kafka Streams is designed to be lightweight and easy to deploy. It consists of the following components:

• Kafka Cluster: The backbone of the architecture, where data is stored and managed.

• Stream Processing Application: The application that uses the Kafka Streams library to process data.

• State Store: A local storage mechanism that allows the application to maintain state across processing steps.

• Kafka Topics: The channels through which data flows in and out of the application.

Kafka Streams applications can run as standalone applications or as part of a larger microservices architecture.

5. Kafka Stream Threading Model

Kafka Streams employs a multi-threaded architecture to maximize throughput and resource utilization. Each instance of a Kafka Streams application can have multiple threads, allowing it to process multiple partitions of input topics in parallel. The threading model is designed to ensure that each thread processes data independently while maintaining the order of messages within each partition.

The key components of the threading model include:

• Stream Threads: Each stream thread processes a subset of partitions from the input topics.

• Task: A task is the unit of work assigned to a stream thread, consisting of one or more partitions.

• Rebalance: When the number of stream threads changes, Kafka Streams performs a rebalance to redistribute tasks among the available threads.

6. Local State Store

The local state store is a critical component of Kafka Streams that allows applications to maintain state across processing steps. It is used for stateful operations such as aggregations and joins. The local state store is backed by a durable storage mechanism, ensuring that the state is preserved even in the event of a failure.

Key features of the local state store include:

• Durability: State is stored on disk, ensuring that it is not lost during application restarts.

• Queryable: Applications can query the local state store to retrieve the current state.

• Change Log Topics: Changes to the state store are recorded in Kafka topics, allowing for recovery and replication.

7. Fault Tolerance

Fault tolerance is a crucial aspect of Kafka Streams. The architecture is designed to handle failures gracefully, ensuring that applications can recover without data loss. Key mechanisms for fault tolerance include:

• Replication: Kafka topics are replicated across multiple brokers, ensuring that data is not lost in case of broker failures.

• State Store Recovery: In the event of a failure, the local state store can be rebuilt from the change log topics.

• Automatic Rebalancing: When a failure occurs, Kafka Streams automatically rebalances tasks among available stream threads, ensuring continuous processing.

8. Implement Kafka Stream with Code Example Step by Step

Step 1: Set Up Your Environment

Before you start coding, ensure you have the following prerequisites:

• Java Development Kit (JDK) installed (version 8 or higher).

• Apache Kafka installed and running.

• An IDE or text editor for writing Java code.

Step 2: Add Dependencies

Add the Kafka Streams dependency to your pom.xml if you are using Maven:

<dependency>
    <groupId>org.apache.kafka</groupId>
    <artifactId>kafka-streams</artifactId>
    <version>3.4.0</version>
</dependency>

Step 3: Create a Kafka Streams Application

Create a new Java class for your Kafka Streams application:

import org.apache.kafka.common.serialization.Serdes;
import org.apache.kafka.streams.KafkaStreams;
import org.apache.kafka.streams.StreamsBuilder;
import org.apache.kafka.streams.StreamsConfig;
import org.apache.kafka.streams.kstream.KStream;

import java.util.Properties;

public class SimpleKafkaStream {
    public static void main(String[] args) {
        Properties props = new Properties();
        props.put(StreamsConfig.APPLICATION_ID_CONFIG, "simple-stream");
        props.put(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        props.put(StreamsConfig.DEFAULT_KEY_SERDE_CLASS_CONFIG, Serdes.String().getClass());
        props.put(StreamsConfig.DEFAULT_VALUE_SERDE_CLASS_CONFIG, Serdes.String().getClass());

        StreamsBuilder builder = new StreamsBuilder();
        KStream<String, String> inputStream = builder.stream("input-topic");
        KStream<String, String> outputStream = inputStream.mapValues(value -> value.toUpperCase());
        outputStream.to("output-topic");

        KafkaStreams streams = new KafkaStreams(builder.build(), props);
        streams.start();

        // Add shutdown hook to respond to SIGTERM and gracefully close Kafka Streams
        Runtime.getRuntime().addShutdownHook(new Thread(streams::close));
    }
}

Step 4: Run Your Application

Compile and run your application. Ensure that you have the input topic (input-topic) created in your Kafka cluster. You can produce messages to this topic using the Kafka console producer.

Step 5: Verify Output

Consume messages from the output topic (output-topic) using the Kafka console consumer to verify that your application is processing data correctly.

9. Conclusion

Apache Kafka Streams is a powerful tool for building real-time data processing applications. Its simplicity, scalability, and fault tolerance make it an excellent choice for developers looking to implement stream processing in their applications. By following the roadmap outlined in this document, beginners can gain a solid understanding of Kafka Streams and start building their own applications.

This article serves as a foundational guide, and as you continue your journey in generative AI and stream processing, consider exploring more advanced topics such as stateful processing, windowing, and integrating Kafka Streams with other technologies. Happy coding!
